ClearCore::SysTimer Class Reference

Detailed Description

Abstract stopwatch/timer base (Start/Elapsed/Completed) with selectable time base.

Use this when: you want a stopwatch object (start, delay, completed, elapsed) and you’ll choose the time base via a derived class.

Pick a derived class:

• SysTimerMs for millisecond-scale delays
• SysTimerUs for microsecond-scale delays.

Abstract stopwatch/timer base (Start/Elapsed/Completed) with selectable time base. More...

#include <SysTimer.h>

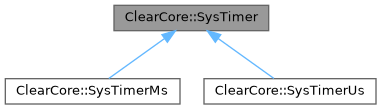

Inheritance diagram for ClearCore::SysTimer:

Public Member Functions
void	SetDelay (uint32_t delay)
	Set the delay of the timer.
void	Start (uint32_t delay)
	Starts the timer with a delay argument.
void	Start ()
	Starts the timer with the default or configured delay.
bool	Completed ()
	Check to see if the timer has completed.
uint32_t	Elapsed ()
	Check how much time has elapsed since the start of the timer.

Member Function Documentation

Completed()

bool ClearCore::SysTimer::Completed ( )

inline

Check to see if the timer has completed.

Note

The timer will roll over after UINT32_MAX ticks have passed since starting the timer. You should be mindful of this rollover when choosing a time base for an application (every ~49.7 days for milliseconds, every ~71.5 minutes for microseconds)

Returns

True if the timer has completed

Elapsed()

uint32_t ClearCore::SysTimer::Elapsed ( )

inline

Check how much time has elapsed since the start of the timer.

Note

The elapsed time will roll over after UINT32_MAX ticks have passed since starting the timer. You should be mindful of this rollover when choosing a time base for an application (every ~49.7 days for milliseconds, every ~71.5 minutes for microseconds)

Returns

The time elapsed in the time base of the timer class

SetDelay()

void ClearCore::SysTimer::SetDelay ( uint32_t  delay )

inline

Set the delay of the timer.

Parameters

[in]

delay

The delay for the timer in the time base of the timer class

Start()

void ClearCore::SysTimer::Start ( uint32_t  delay )

inline

Starts the timer with a delay argument.

Parameters

[in]

delay

The delay for the timer in the time base of the timer class

---

The documentation for this class was generated from the following file:

• SysTimer.h
